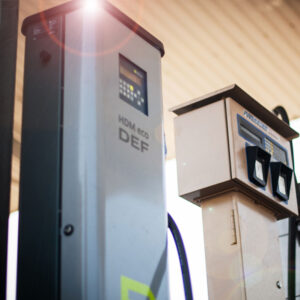

The HDM eco DEF dispensing system is an out of the box complete dispensing package for Diesel Exhaust Fluid, packed with features that meet the needs of the most demanding customers.

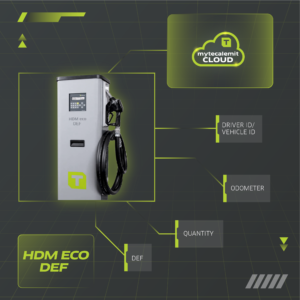

This system is easy to set up: simply connect your supply line and power, decide the number of users and vehicles (up to 4,000) and your system is ready! In addition to being rugged and easy to install, this unique dispensing system offers benefits which you would expect to find on much more expensive systems, including inventory management with the ability to store up to 10,000 transaction backups, as well as four different ways to retrieve your data: USB, LAN, WIFI, and Cellular.
Inside of this unit, you will find TECALEMIT’s flagship pump, the Hornet W85, which provides up to 13 feet of suction lift, an oval-gear pulse meter, a two-line backlit LCD display, and the ability to pair this hardware with TECALEMIT’s signature software, MyTecalemit Cloud. This unit is also able to track tank levels (TECALEMIT probe is required).
Make things easy with this DEF dispensing system!
Pump: W85 Hornet Hybrid pump
Voltage: 110V 60Hz
True flow rate: 10 gpm at nozzle
Max suction: 13ft.
Inlet: 3/4” FNPT
Meter: Oval gear w/ pulse | 0.5% accuracy
Discharge hose: 3/4” dia x 13ft.
Enclosure: Robust powder-coated enclosure
Display: Two line LCD display, illuminated
Management back up system: up to 10,000 transactions
Data transfer: USB, LAN, WiFi, Cellular
Dimensions: (W x H x D) 16” x 56” x 11”
Weight: 97 lbs.
Driver ID | Vehicle ID | Key fob |
Ships fully assembled, electrical and fluid supply line is all that is needed.
Diesel Exhaust Fluid (DEF)
